PROJECT DESCRIPTION
Located in the Kurdistan Region of Iraq, this complex of more than 1,500 m² has 11 themed restaurants from different countries. Completed at the end of 2017, it offers a unique dining experience in a modern setting.
LOCATION
Erbil, Kurdistan, Iraq
YEAR OF EXECUTION
2016
APPROXIMATE SURFACE
6.000 m²
COVERING
Slim Neolith Porcelain 6 mm
SB SYSTEM USED
Sistema Compact Ceramic System – 25/0380 – Mechanical and Adhesive Fixation
TECHNICAL DESCRIPTION
The ventilated facade system is composed of:
- Aluminum support and retention brackets (brackets or separators) for the transmission of loads from the substructure to the original self-supporting structure through anchors.
- Anchoring the brackets or brackets to the support using stainless steel screws.
- Ventilated air chamber and 50 mm rock wool thermal insulation
- Vertical T and L profiles, attached to brackets by means of stainless steel self-tapping screws.
- Staples for fixing the exterior covering to the vertical profiles using self-drilling hexagonal head screws

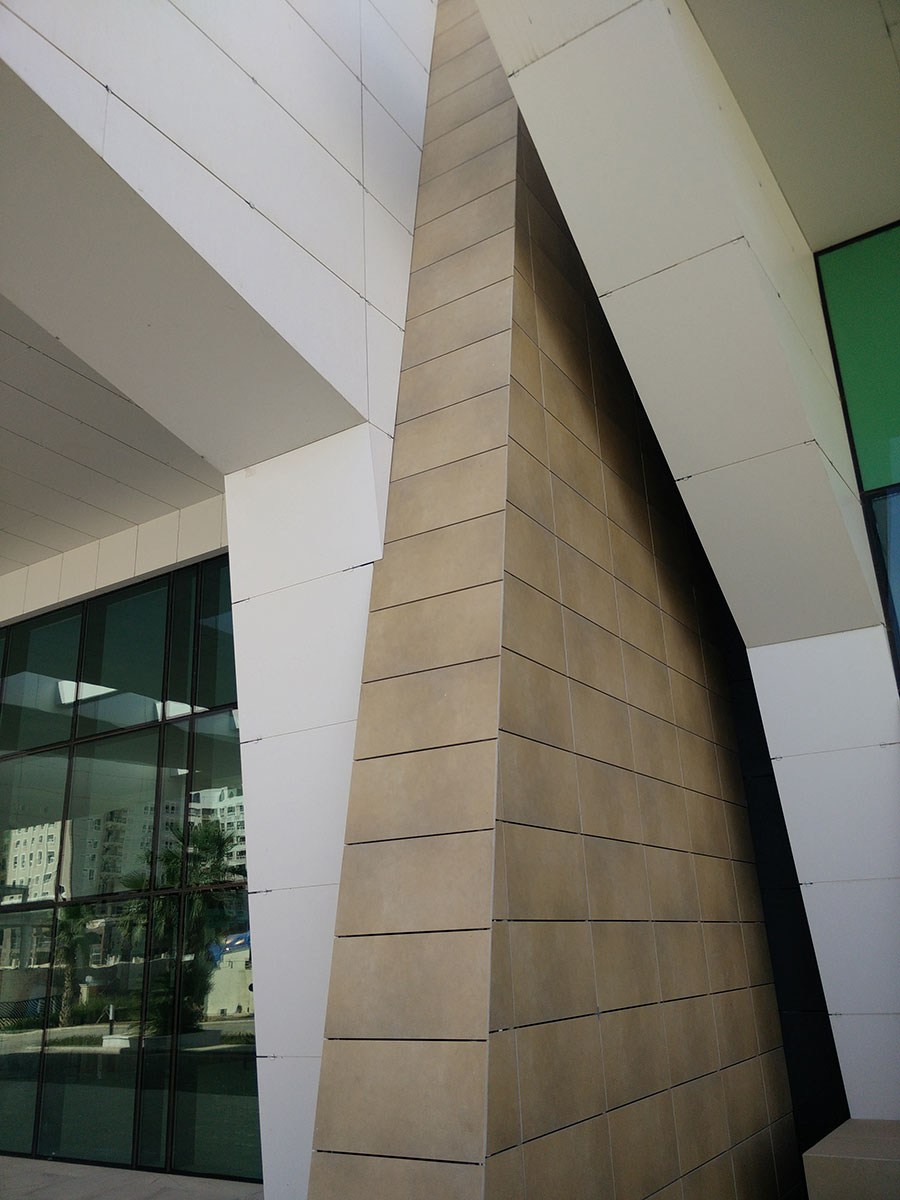

- Exterior cladding made of Porcelanica Sllim 6 mm Neolith plate, the cladding pieces are fixed to the vertical profiles using hidden fixing stainless steel staples and structural adhesive
