PROJECT DESCRIPTION

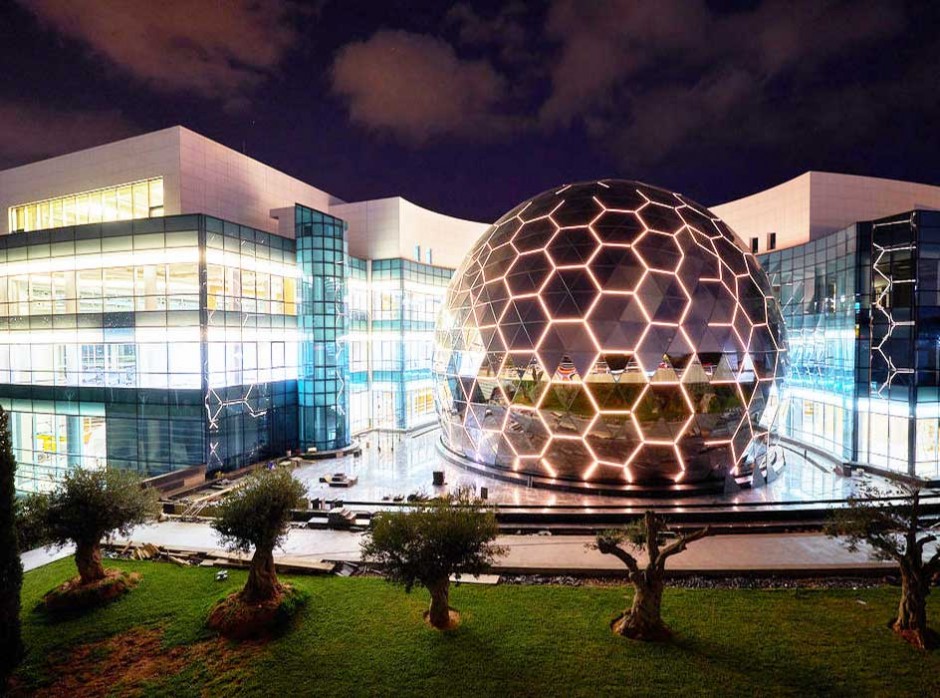

Training complex for future pilots and administrative headquarters of M.E.A.. The complex was completed at the end of 2016.
LOCATION
Beirut, Lebanon
CONSTRUCTION DATES
2015 – 2016
APPROXIMATE SURFACE
6.000 m²
COVERING
Compact porcelain tile 12 mm thick, 800X800 mm format
SB SYSTEM USED
Sistema Compact Ceramic System – 25/0380 – Hidden
TECHNICAL DESCRIPTION

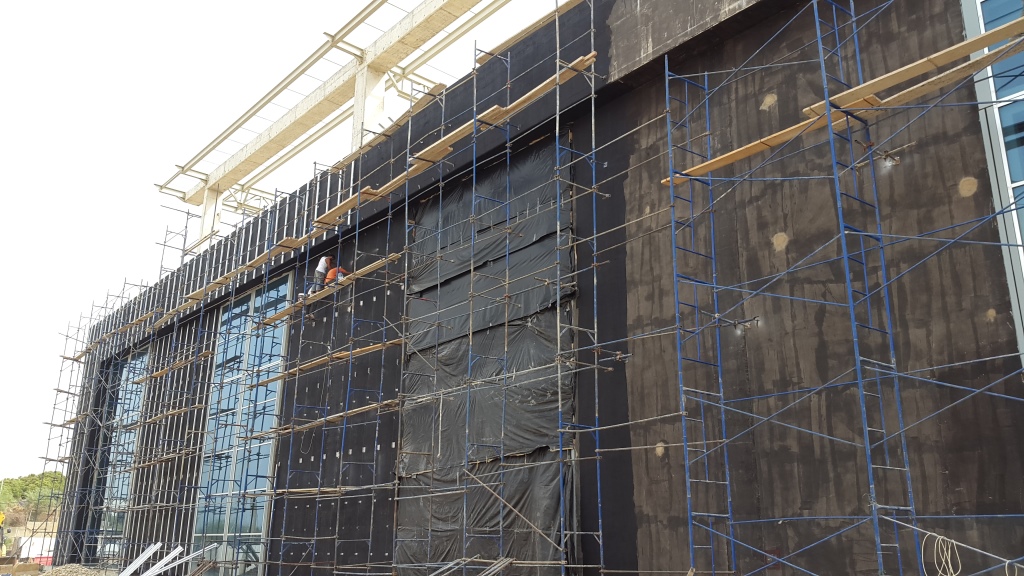

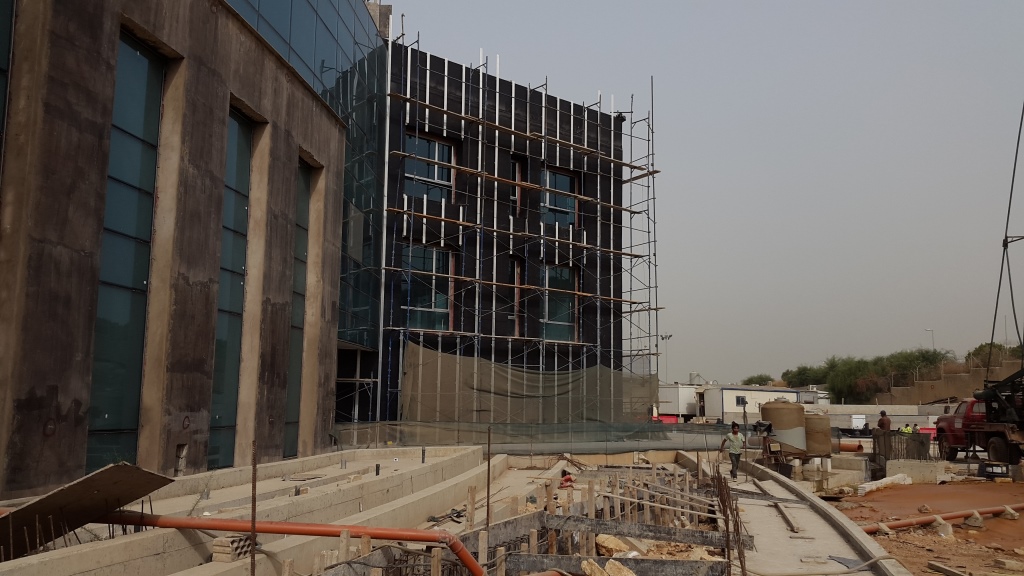

The ventilated facade system is composed of:

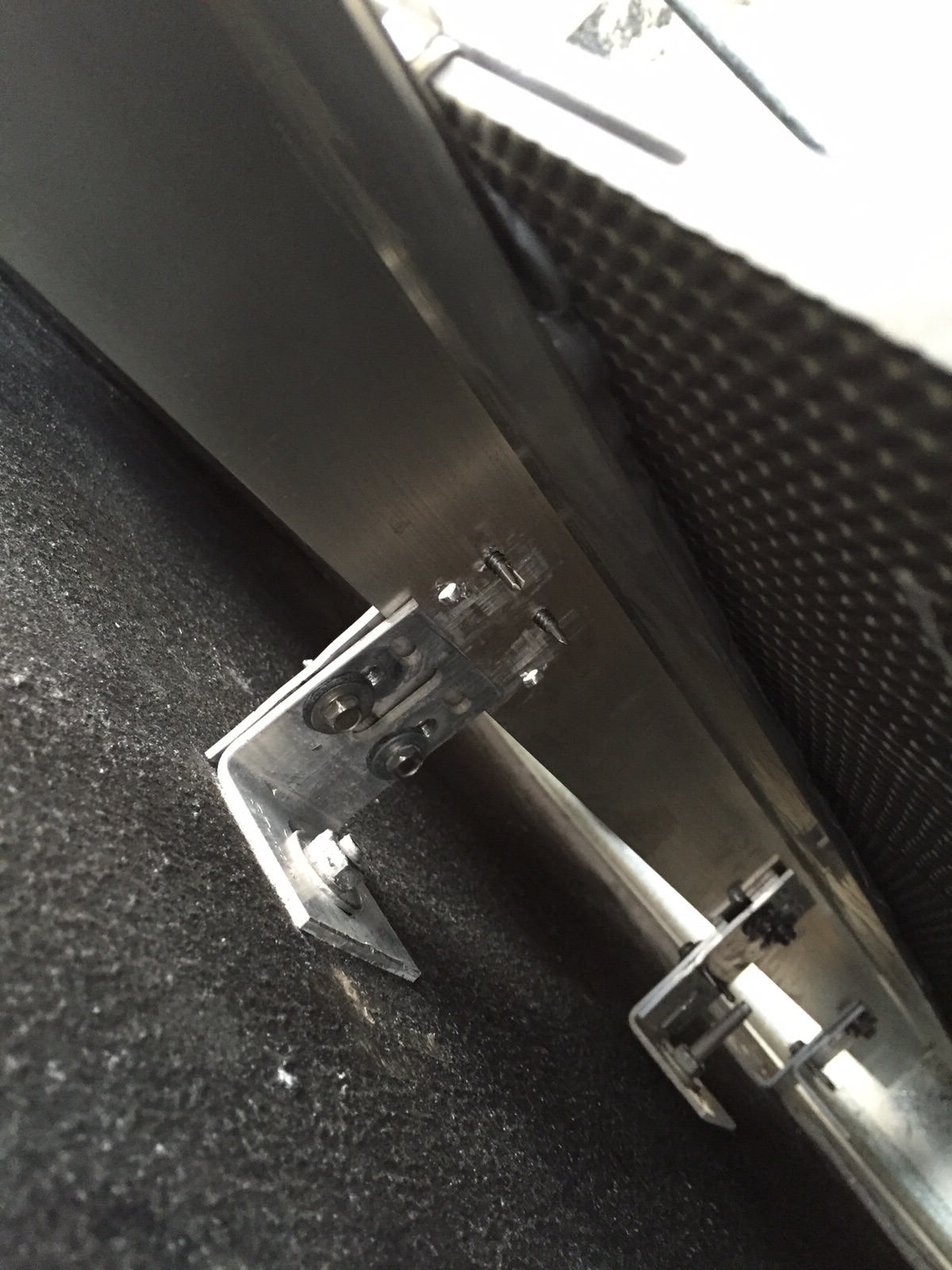

- Aluminum support and retention brackets (brackets or separators) for the transmission of loads from the
- substructure to the original self-supporting structure using anchors.
- Anchoring the brackets or brackets to the support using stainless steel screws.
- Ventilated air chamber and 50 mm rock wool thermal insulation
- Vertical T and L profiles, attached to brackets by means of stainless steel self-tapping screws.
- Staples for fixing the exterior covering to the vertical profiles using self-drilling hexagonal head screws

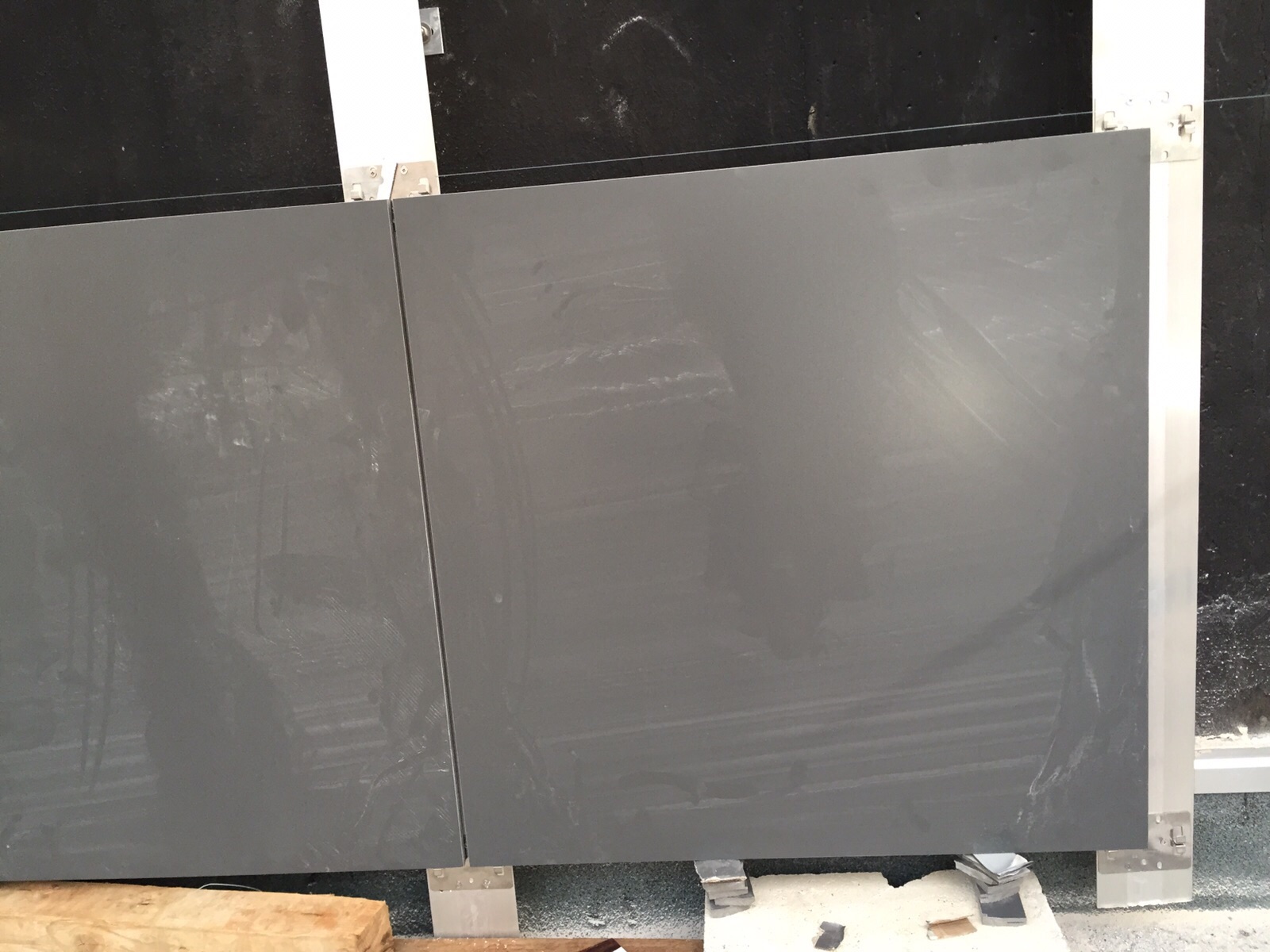

- Exterior covering of Roca Brand Porcelanica plate of 800 x 800 x 12

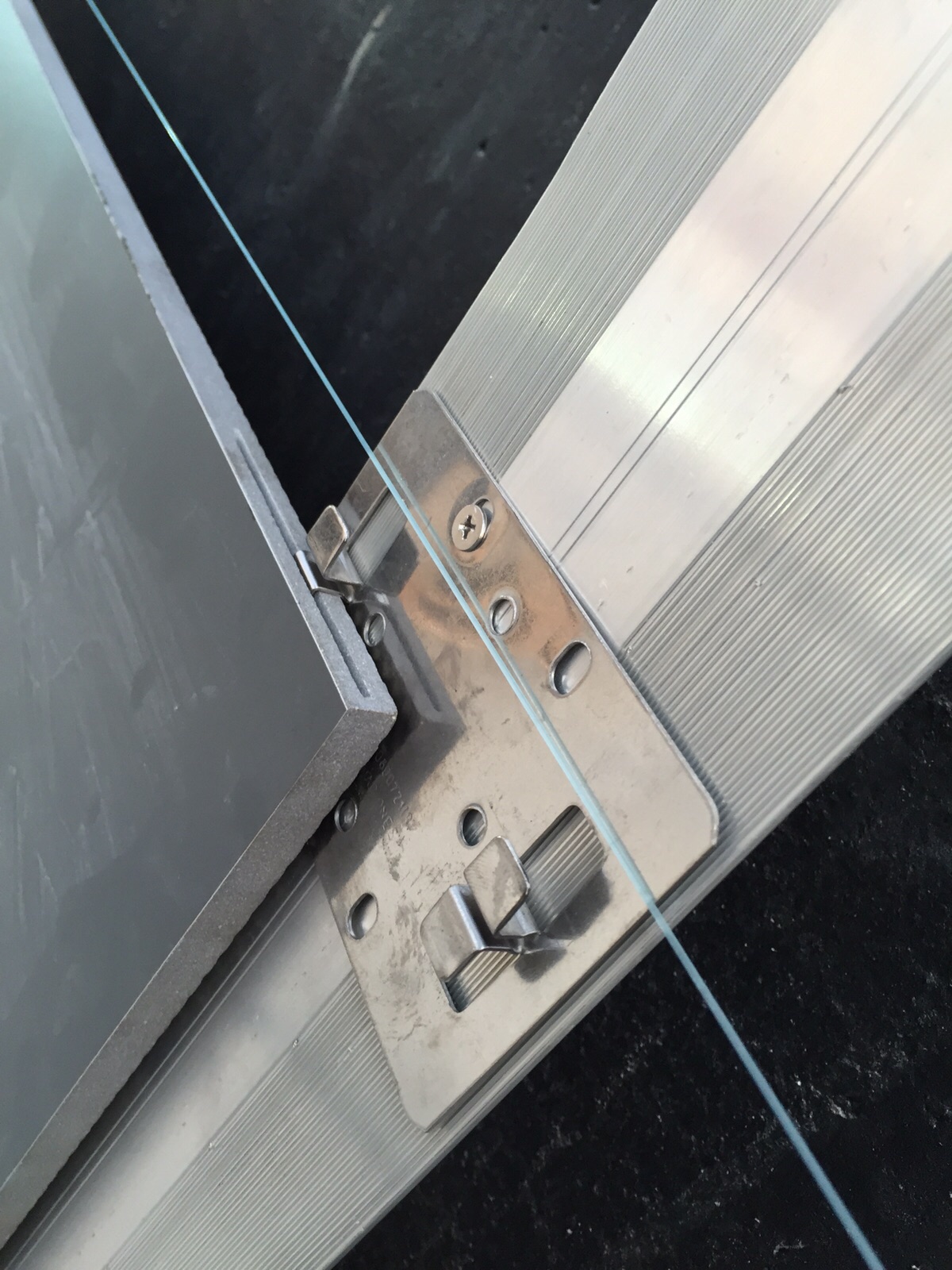

- The covering is fixed to the vertical profiles using hidden fixing stainless steel staples and polyurethane adhesive.
- Metal fencing for windows and doors in epoxy painted sheet metal
