Ventilated Facade Rus shopping center
PROJECT DESCRIPTION

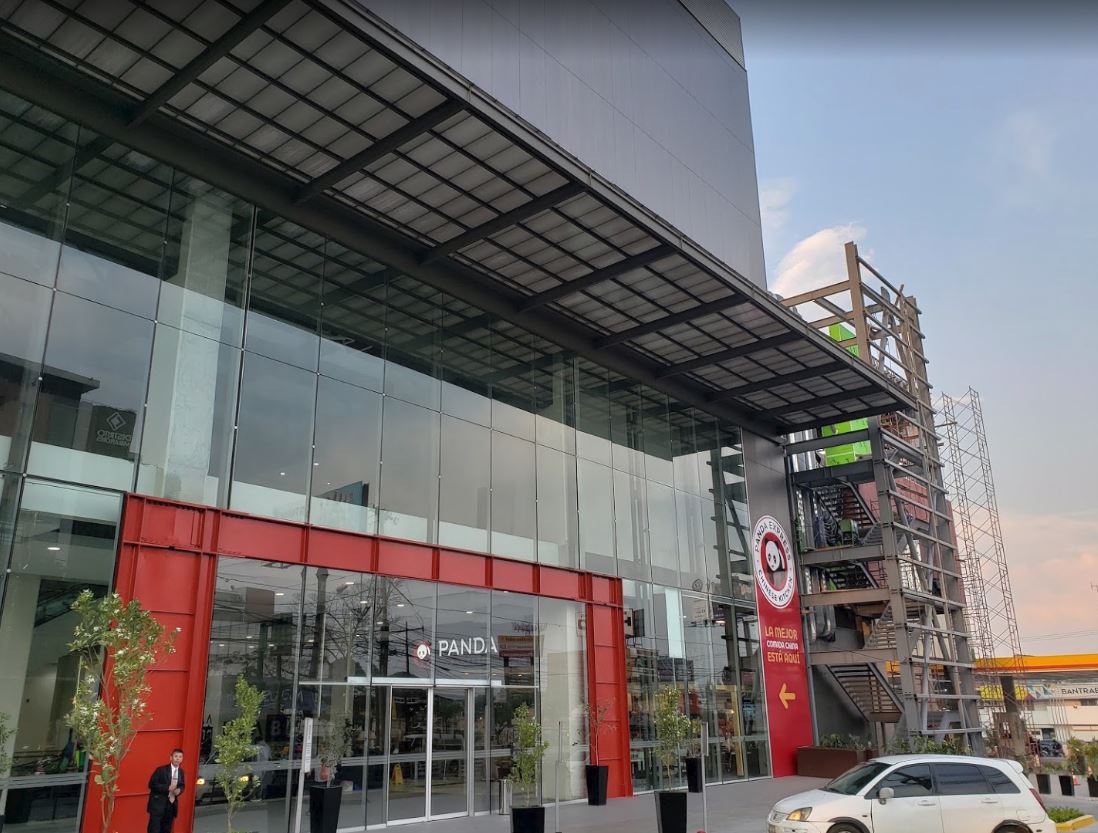

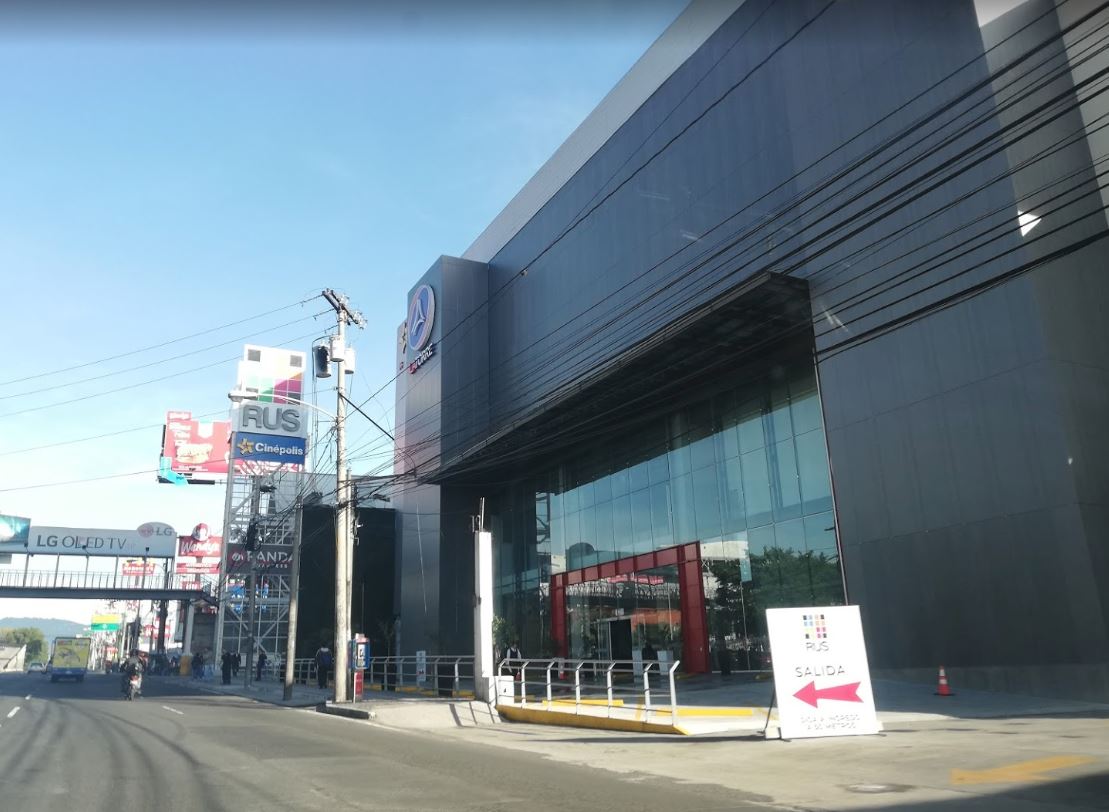

Completed at the end of 2017, this main façade modernizes a commercial building in the Guatemalan capital.
LOCATION
Guatemala-City, Guatemala
YEAR OF EXECUTION
2017
APPROXIMATE SURFACE
4.500 m²
COVERING
Slim NEOLITH porcelain tile 3600X1200 mm thickness 6 mm
SB SYSTEM USED
Large Ceramic System – 25/3078
TECHNICAL DESCRIPTION

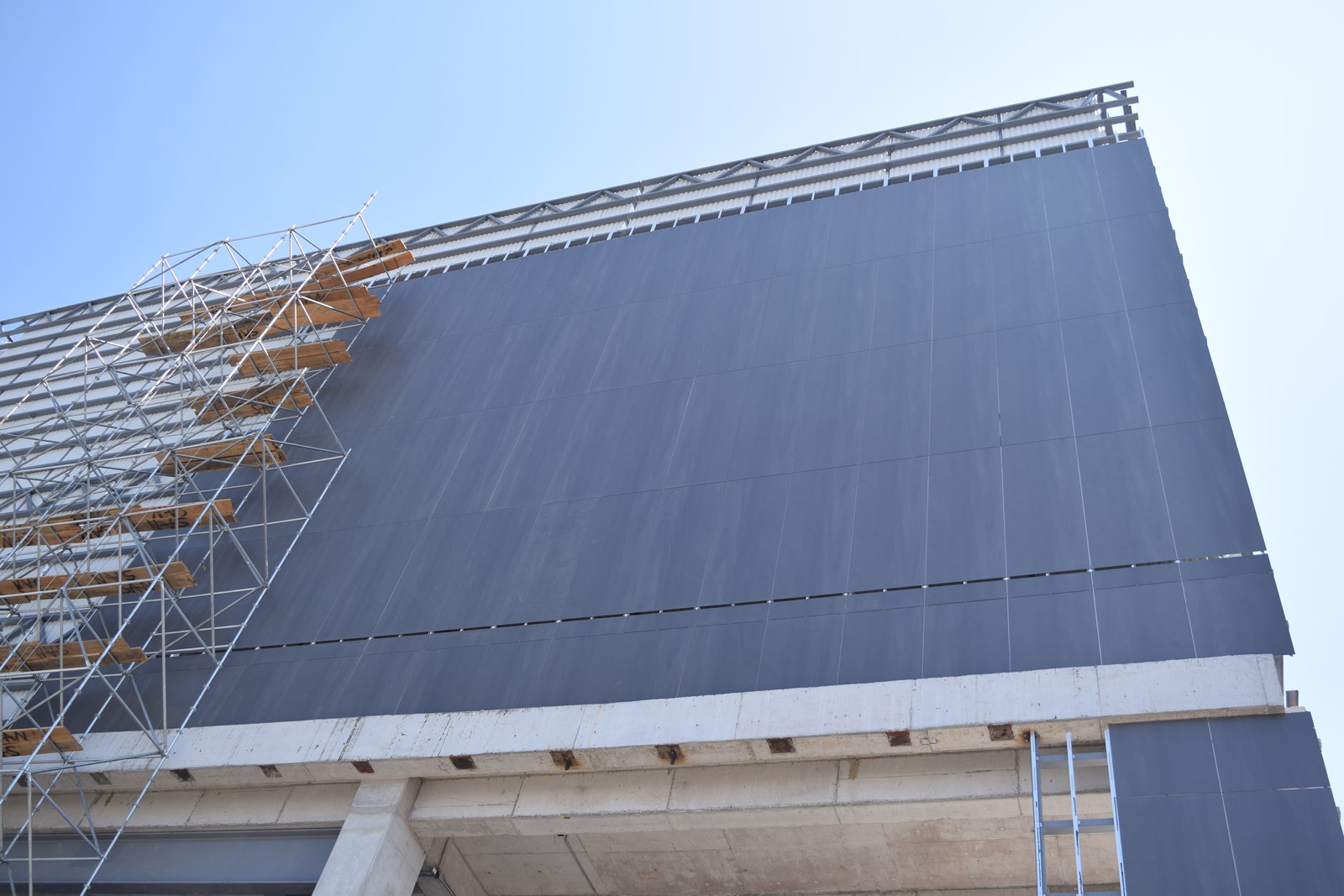

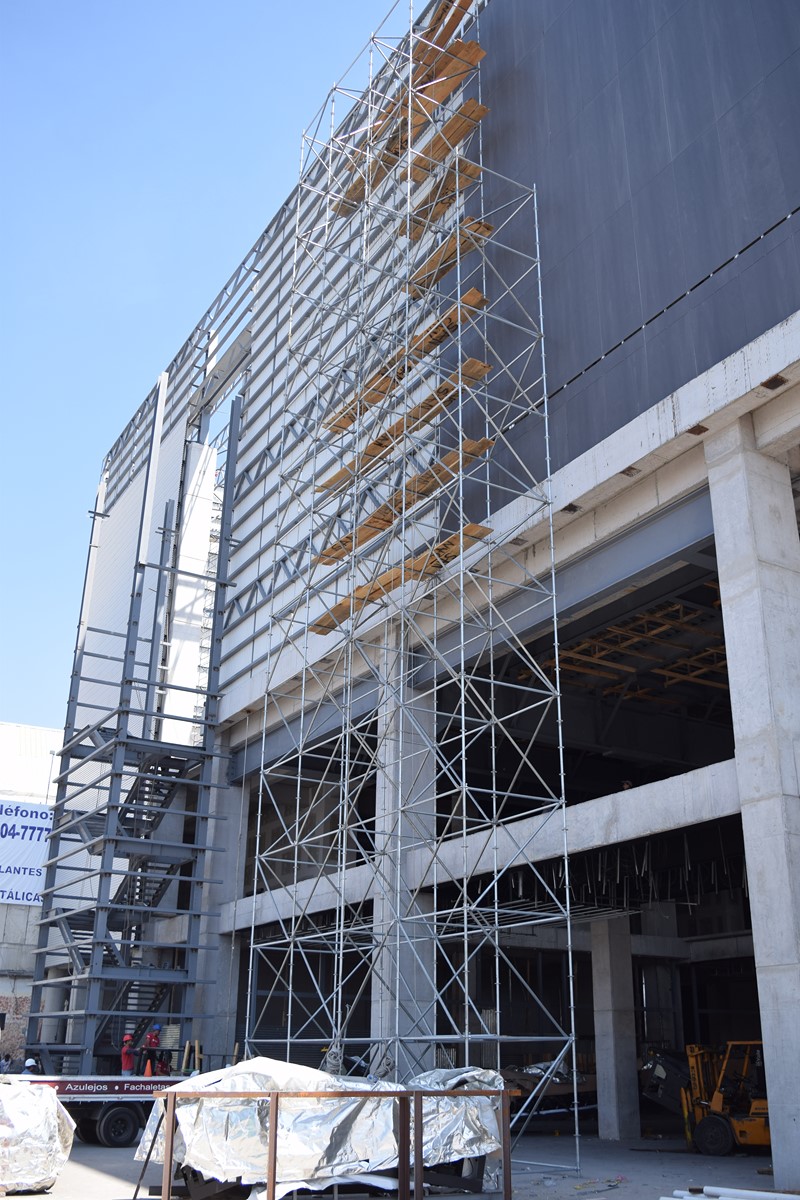

The ventilated facade system is composed of:
- Aluminum support and retention brackets (brackets or separators) for the transmission of loads from the
- substructure to the original self-supporting structure using anchors.
- Anchoring the brackets or brackets to the support using stainless steel screws.
- Ventilated air chamber and 50 mm rock wool thermal insulation
- Vertical T and L profiles, attached to brackets by means of stainless steel self-tapping screws.
- Staples for fixing the exterior covering to the vertical profiles using self-drilling hexagonal head screws

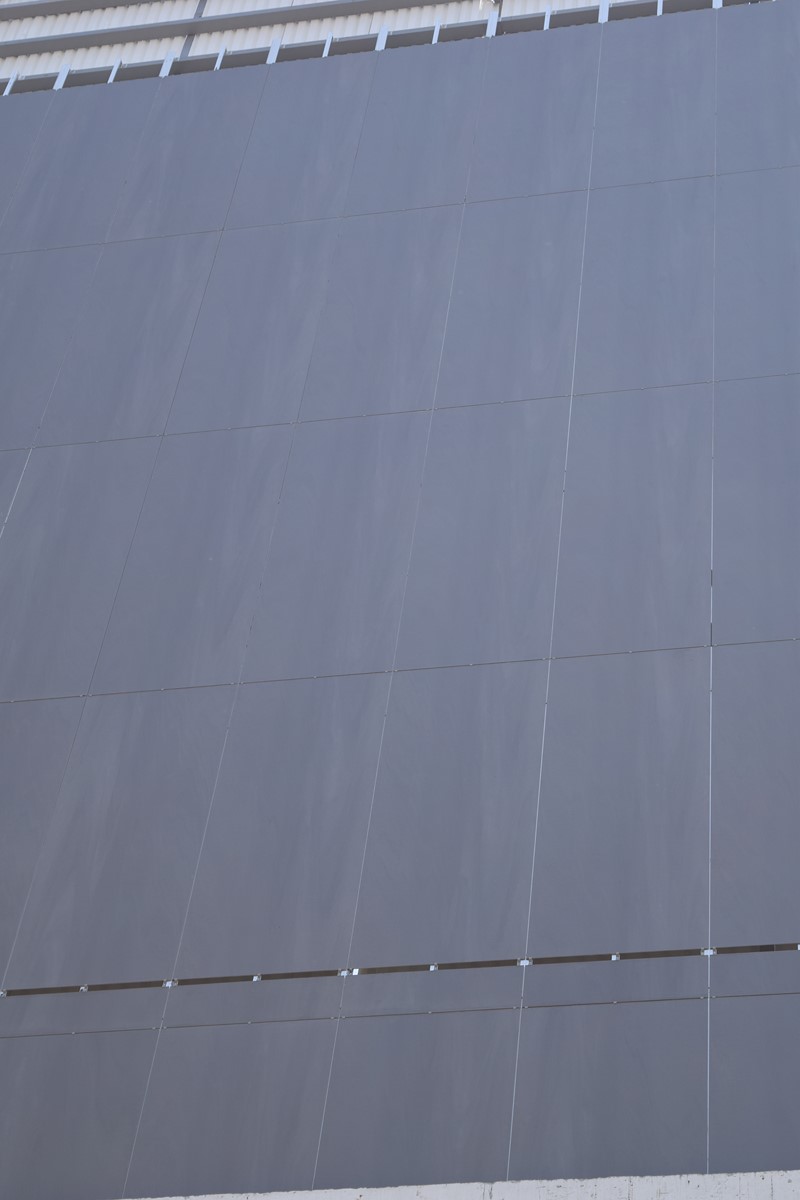

- Exterior cladding made of 6 mm thick Neolith Porcelanica Slim plate
- The covering is fixed to the vertical profiles using lacquered aluminum clips for visible fixing.
- Metal fencing of windows and curtain walls
