PROJECT DESCRIPTION

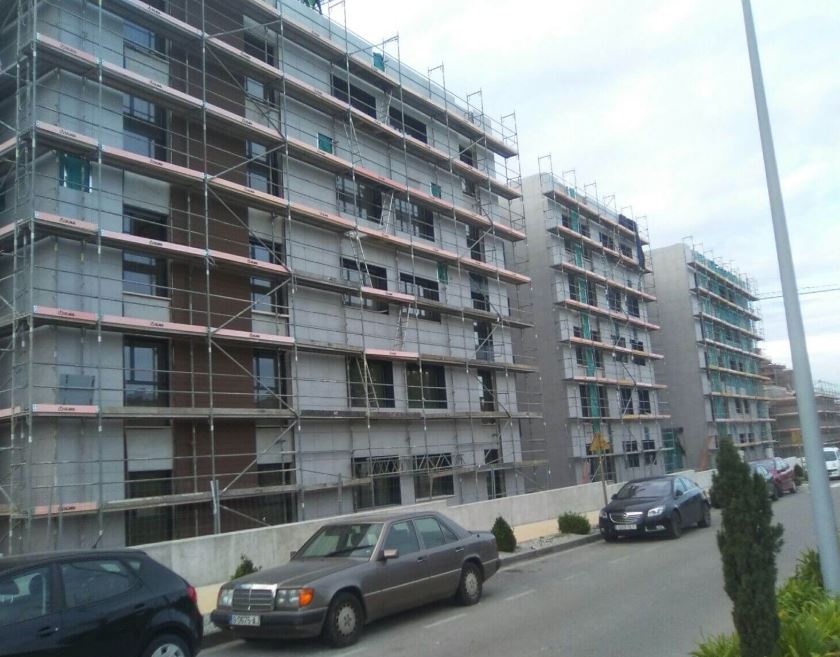

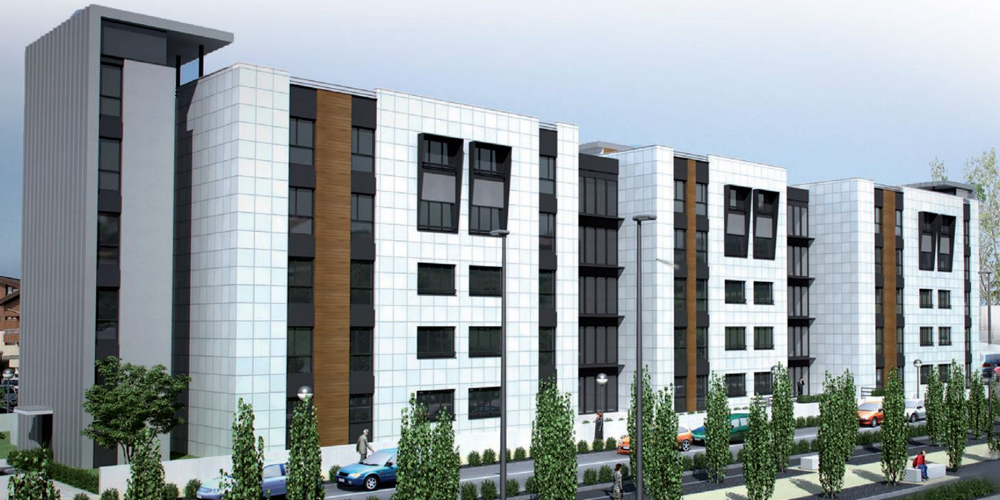

Facade for a residential building and day center in the town of Torrelavega. The complex was completed at the end of 2017.
LOCATION
Torrevelaga, Cantabria, Spain
YEAR OF EXECUTION
2017
APPROXIMATE SURFACE
4.000 m²
COVERING
Compact porcelain tile 10 mm thick, 600X600 mm format
SB SYSTEM USED
Compact Ceramic System – 25/0380 Hidden
TECHNICAL DESCRIPTION
The ventilated facade system is composed of:
- Aluminum support and retention brackets (brackets or separators) for the transmission of loads from the
- substructure to the original self-supporting structure using anchors.
- Anchoring the brackets or brackets to the support using stainless steel screws.

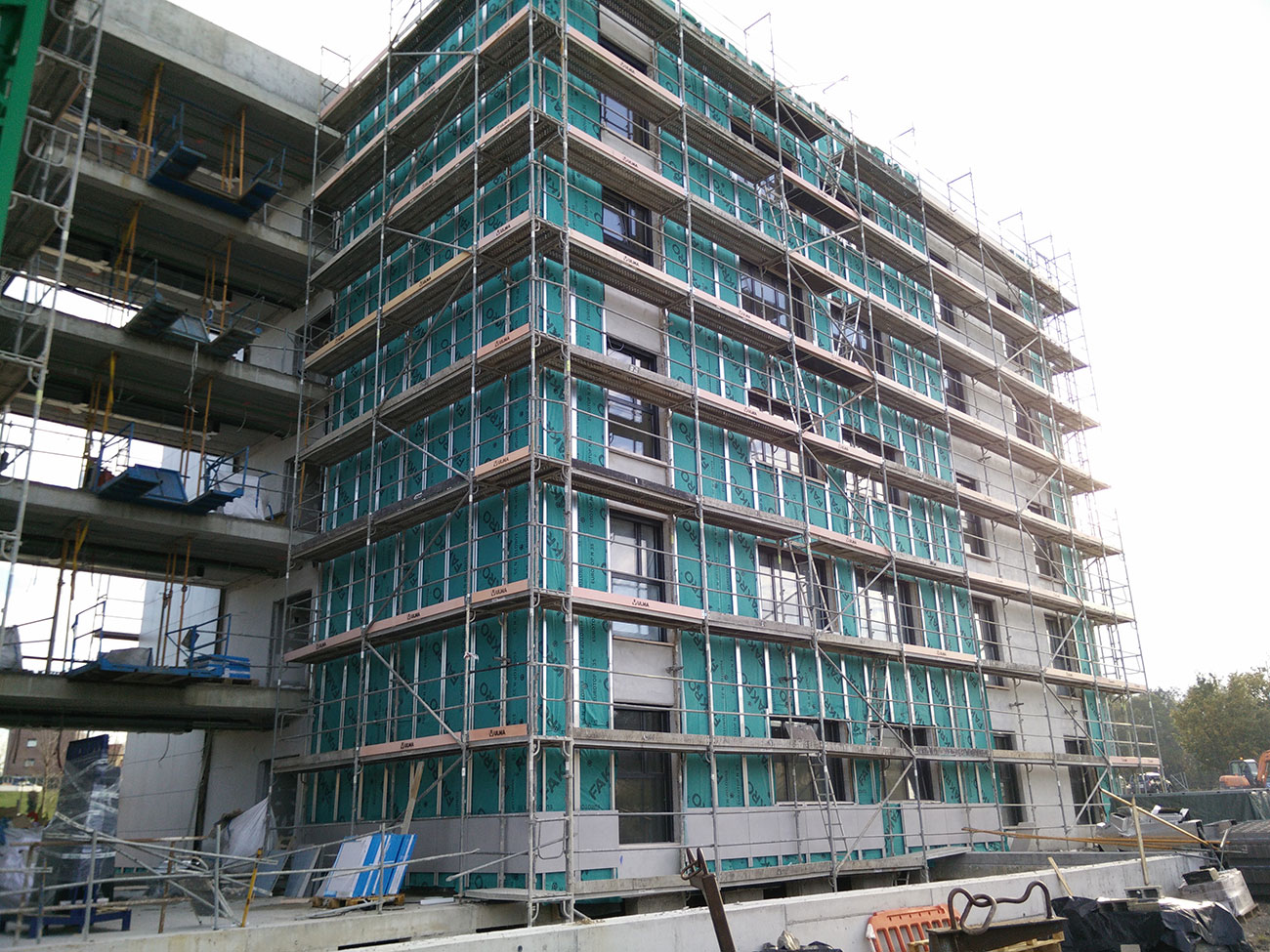

- Ventilated air chamber and 50 mm rock wool thermal insulation

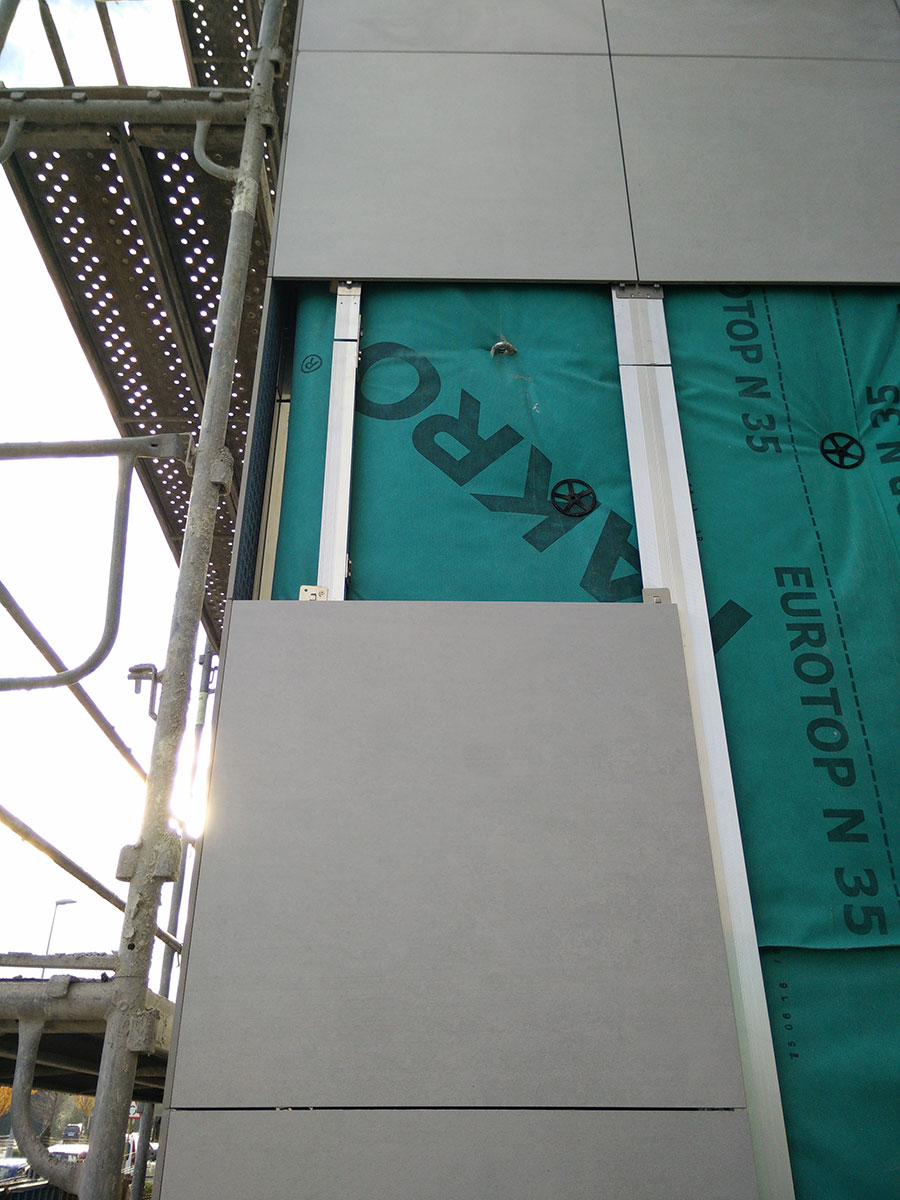

- Vertical T and L profiles, attached to brackets by means of stainless steel self-tapping screws.
- Staples for fixing the exterior covering to the vertical profiles using self-drilling hexagonal head screws

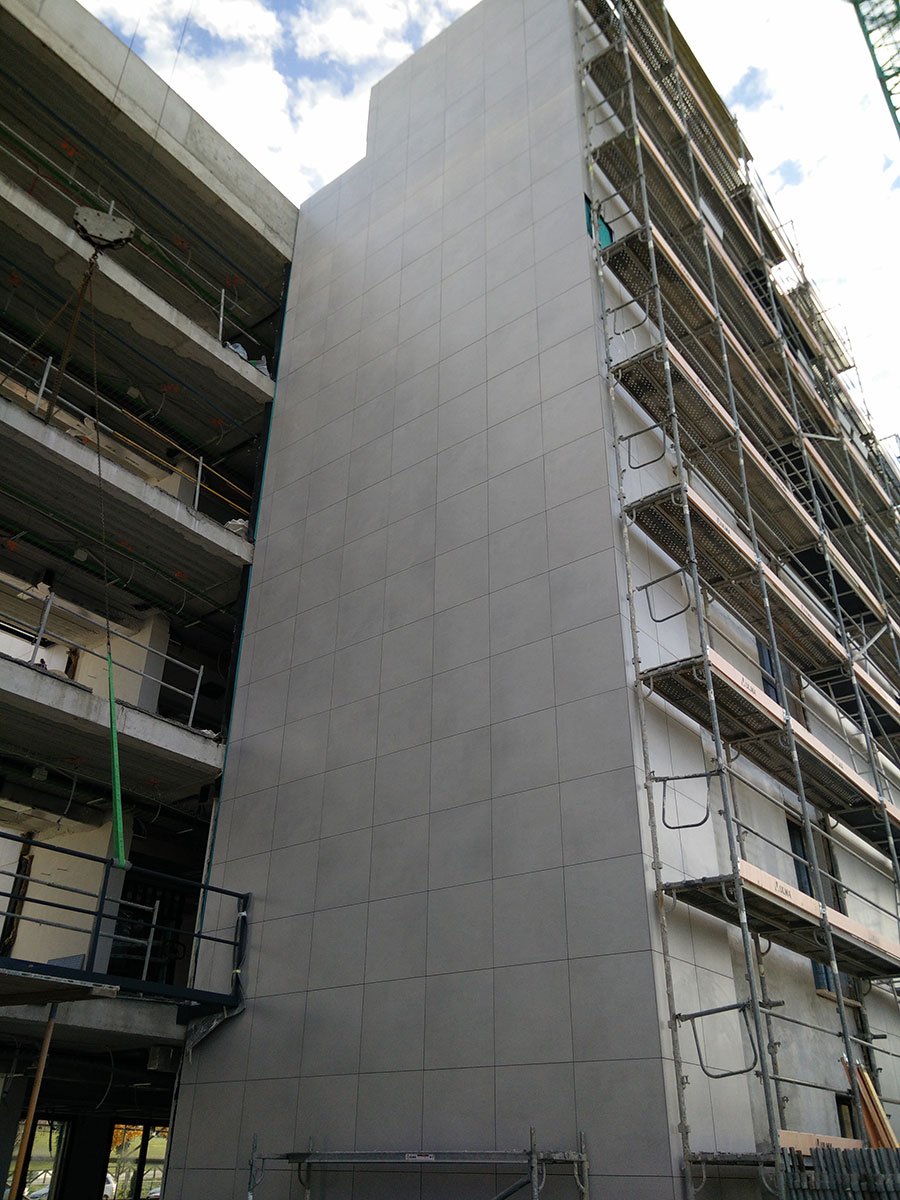

- Exterior covering of Porcelanica plate 600x600x10 mm
- The cladding is fixed to the vertical profiles using stainless steel staples for hidden fixing
- Metal fencing for windows and doors in epoxy painted sheet metal
