PROJECT DESCRIPTION

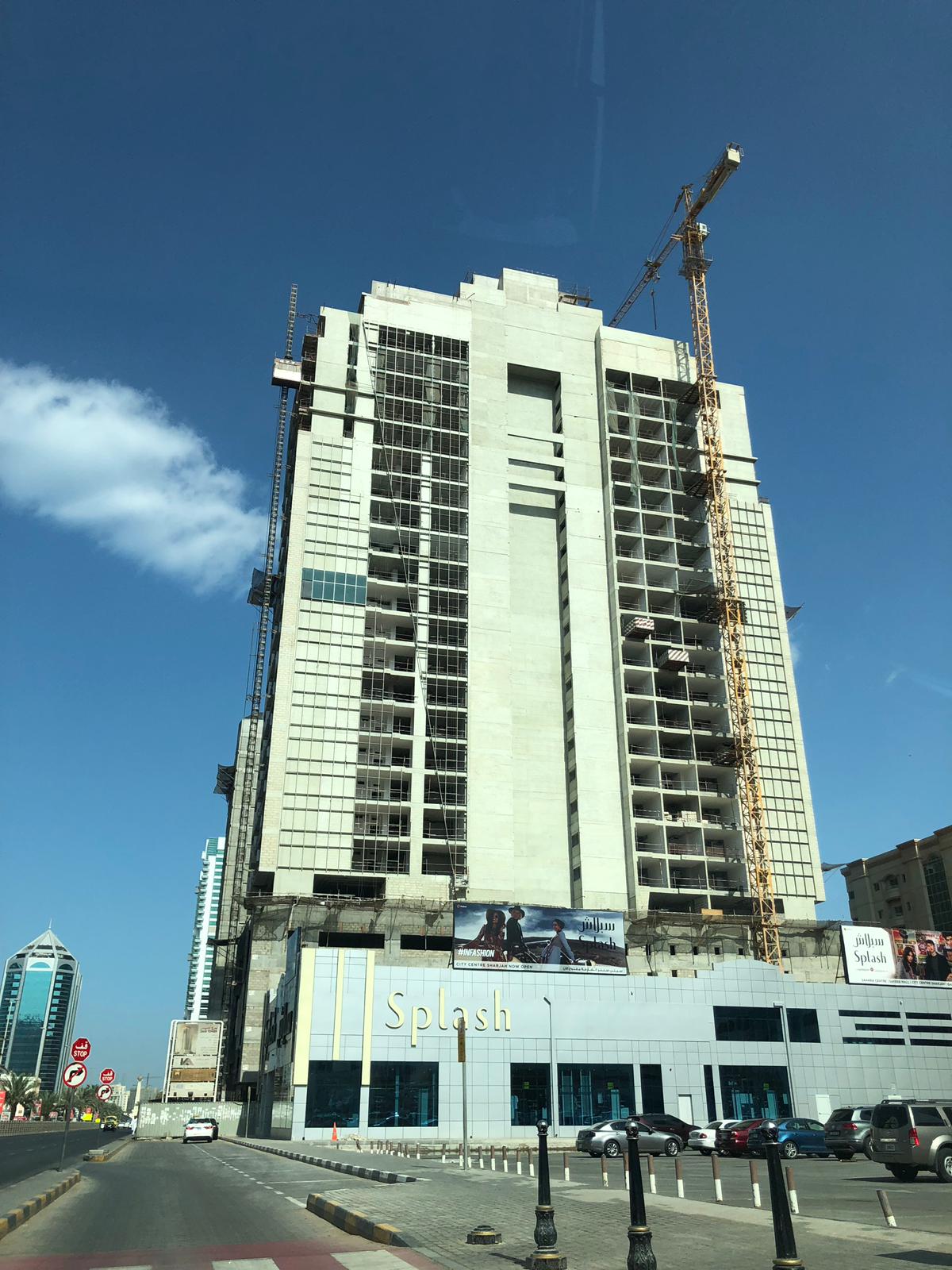

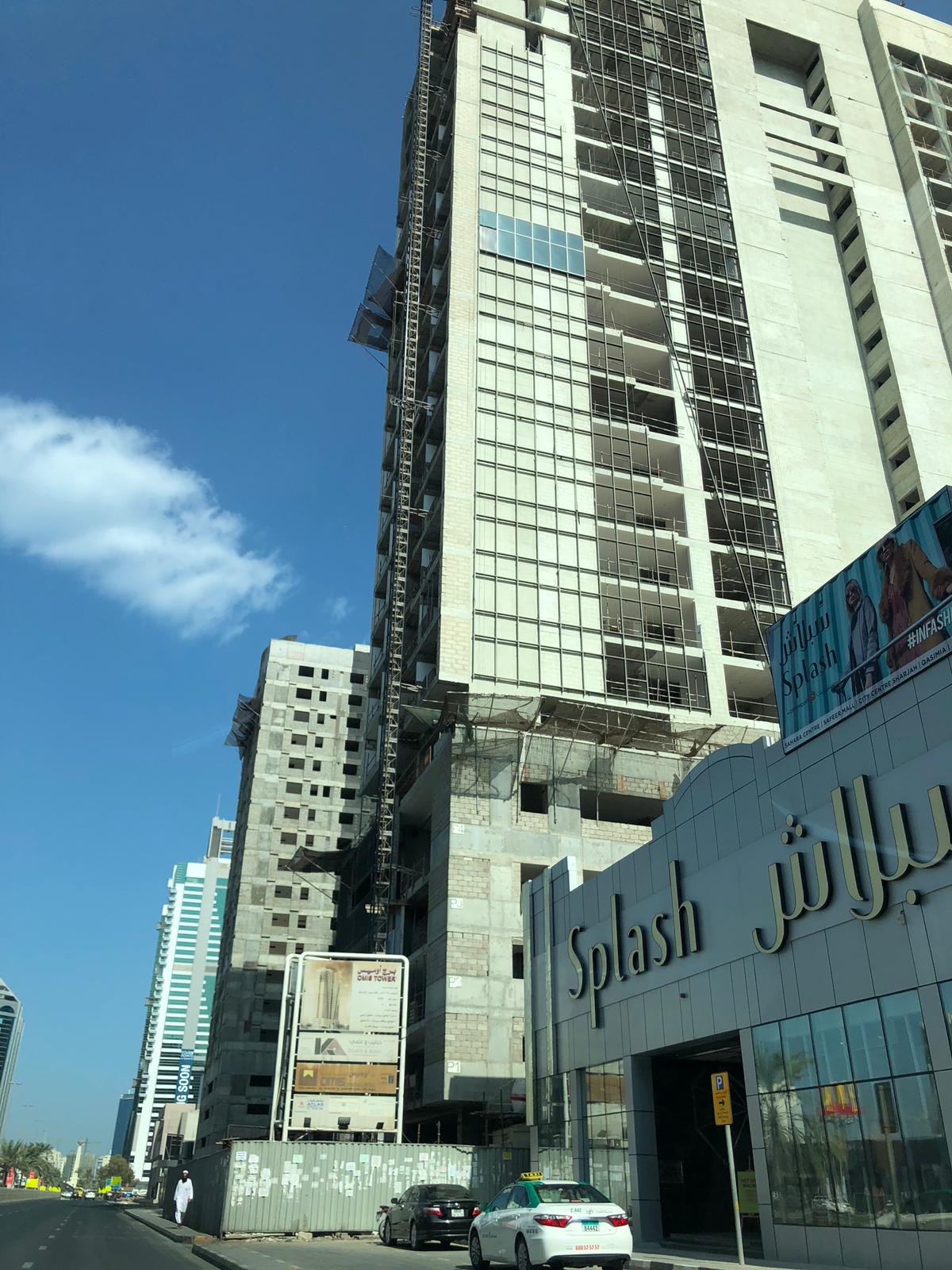

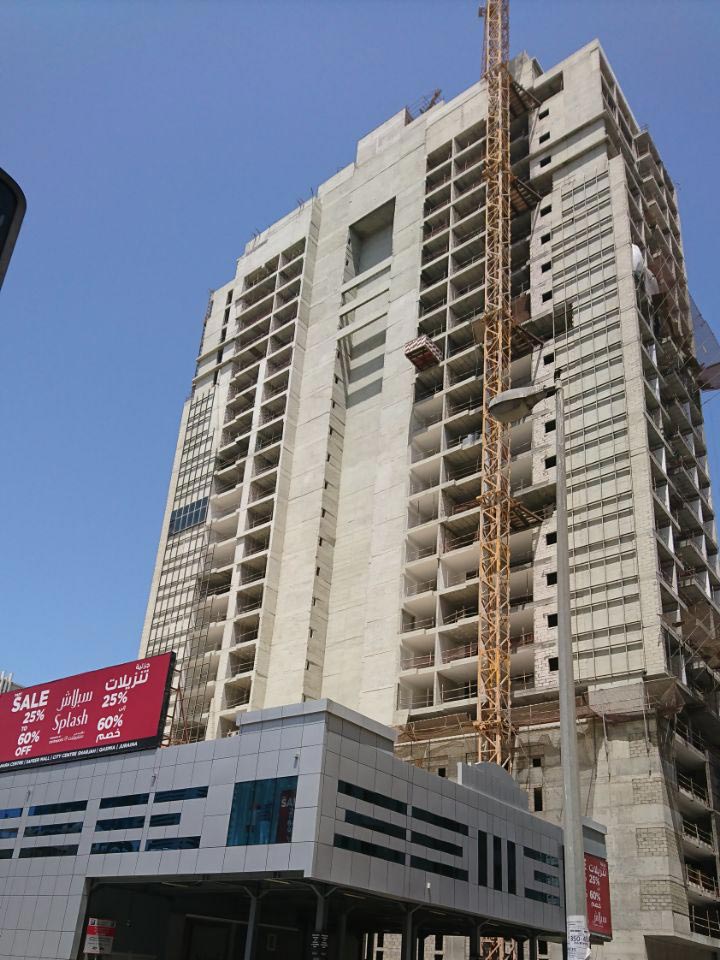

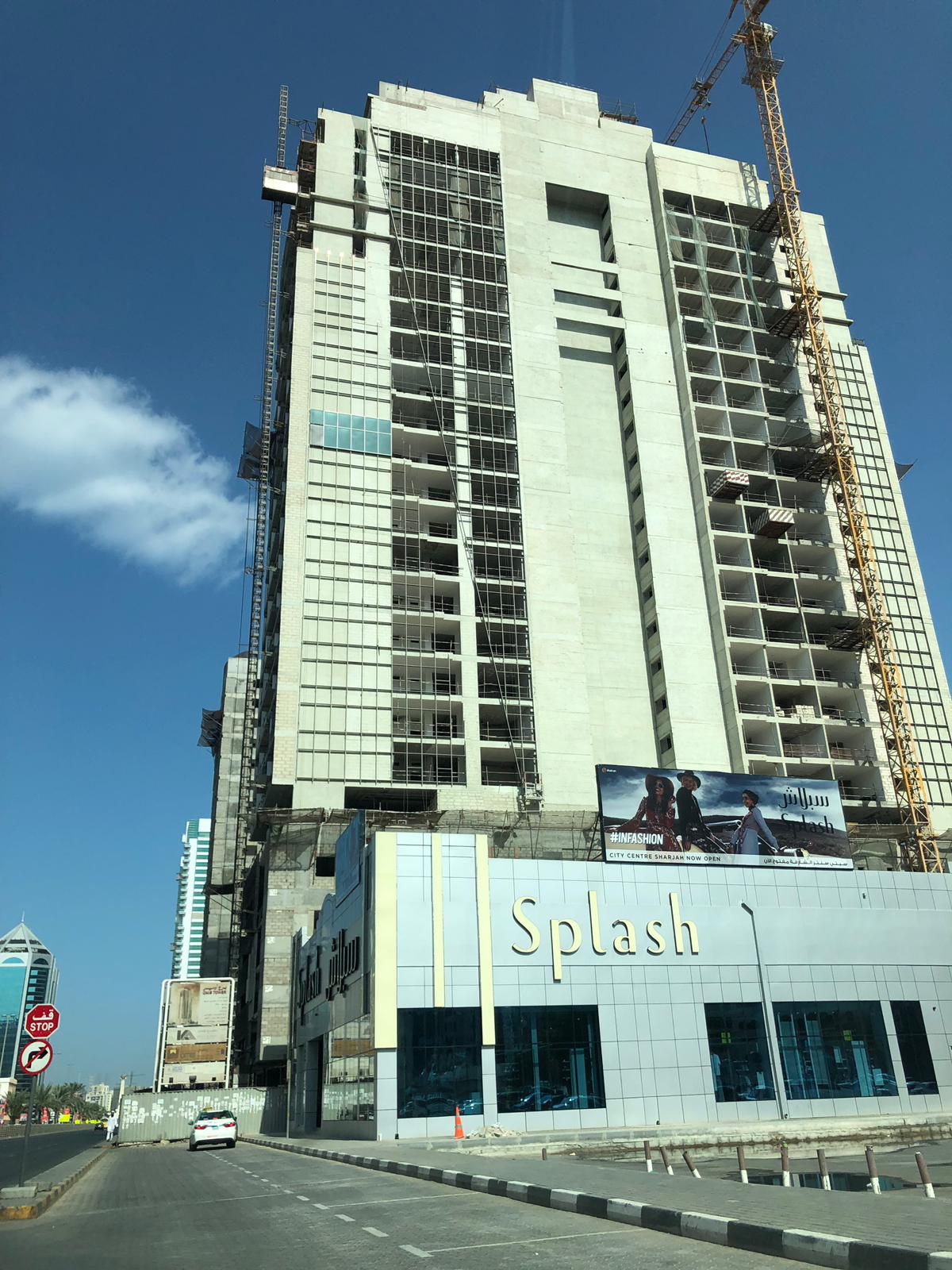

Facade for residential and office building. The complex was completed at the end of 2018.
LOCATION
Sharjah, AEU
YEAR OF EXECUTION
2018
APPROXIMATE SURFACE
7.000 m²
COVERING
10 mm thick compact porcelain tile, 1200X600 mm format
SB SYSTEM USED
Sistema Compact Ceramic System – 25/0380 – Hidden
TECHNICAL DESCRIPTION
The ventilated facade system is composed of:
- Aluminum support and retention brackets (brackets or separators) for the transmission of loads from the
- substructure to the original self-supporting structure using anchors.
- Anchoring the brackets or brackets to the support using stainless steel screws.
- Ventilated air chamber and 50 mm rock wool thermal insulation
- Vertical T and L profiles, attached to brackets by means of stainless steel self-tapping screws.
- Staples for fixing the exterior covering to the vertical profiles using self-drilling hexagonal head screws
- Porcelanica plate exterior covering 1200x600x12 mm
- The covering is fixed to the vertical profiles using stainless steel staples for hidden fixing and polyurethane adhesive.
- Metal fencing for windows and doors in epoxy painted sheet metal
