SYSTEM DESCRIPTION

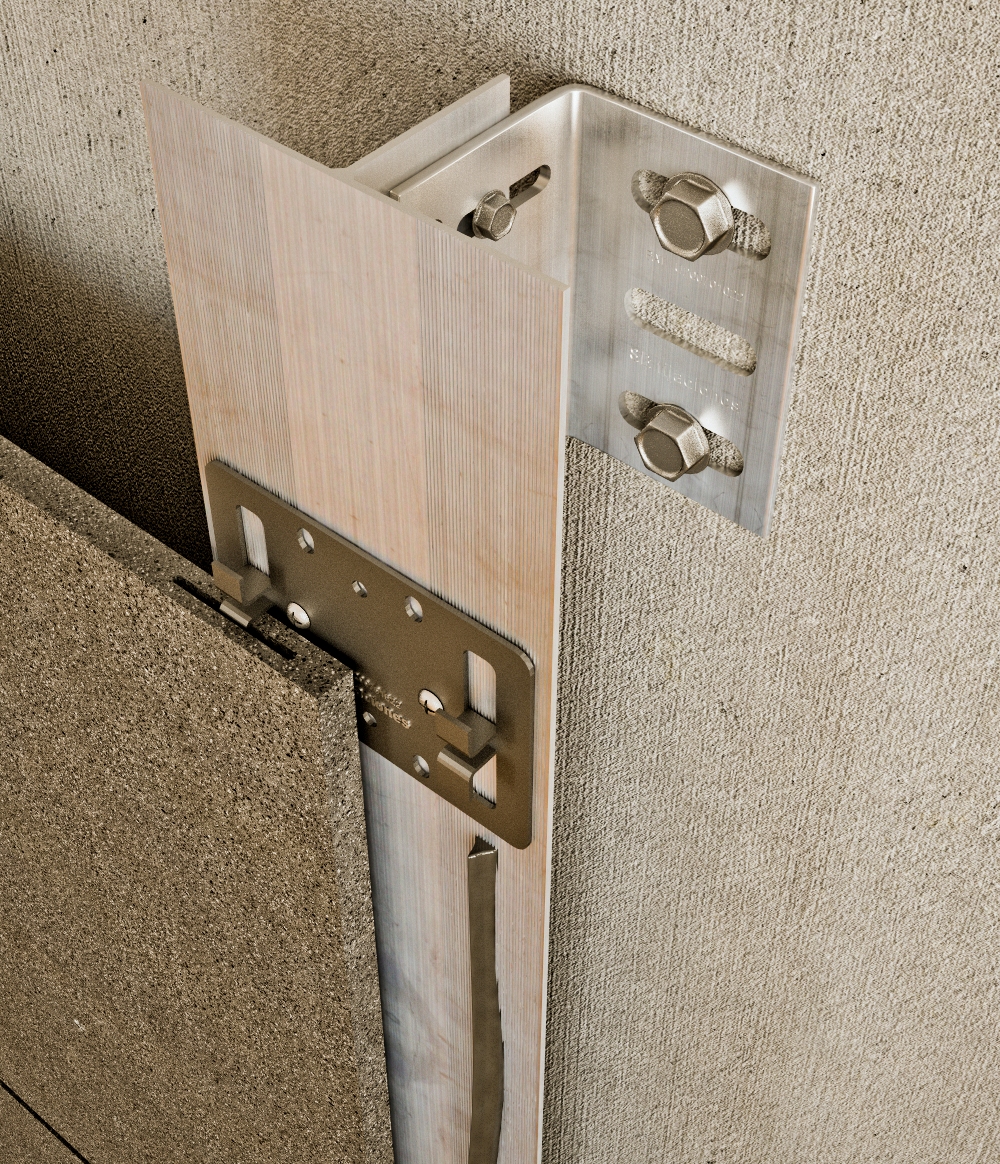

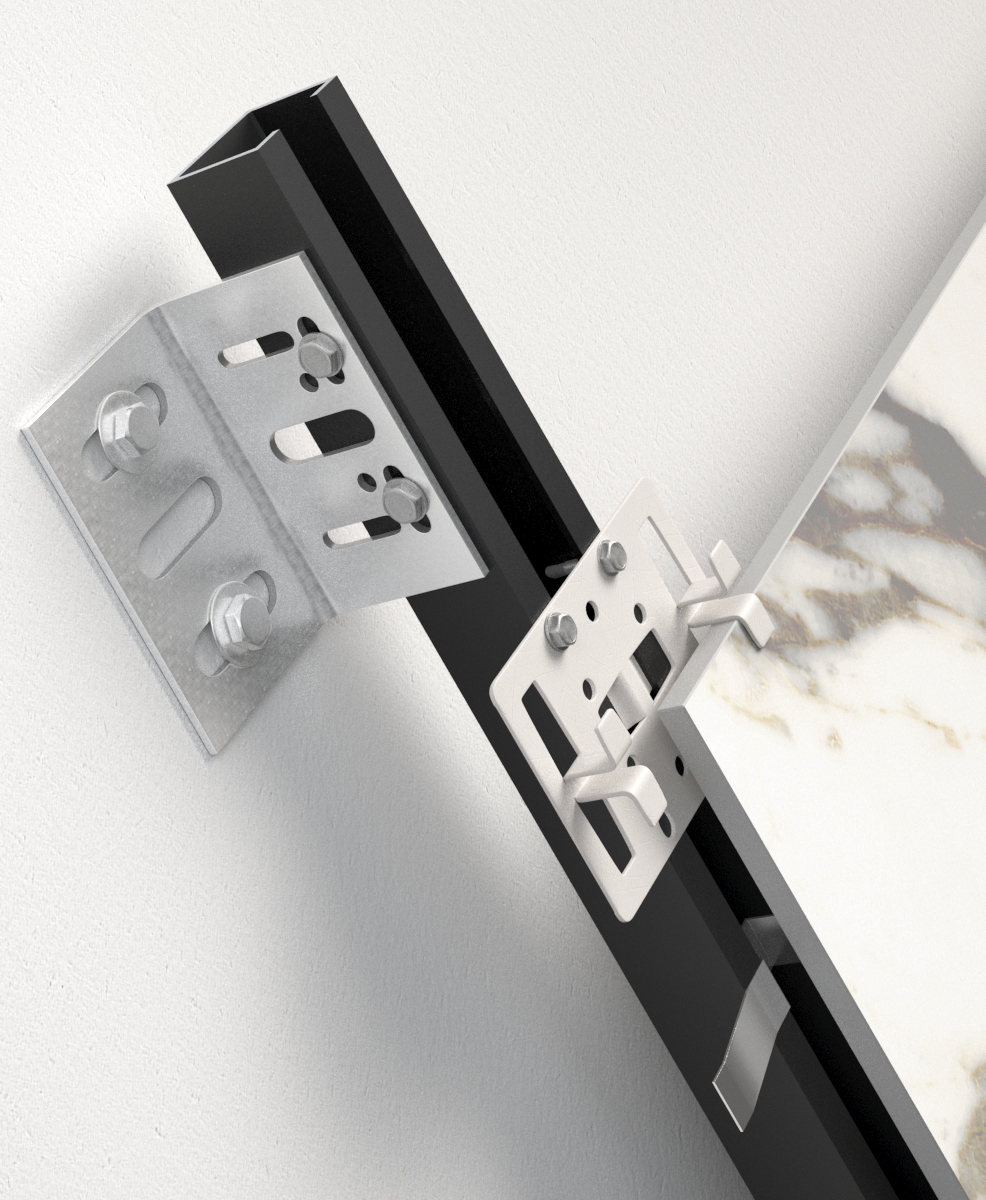

This is a fixing system for installing ventilated façades, easy to install, but above all safe, manufactured with top quality raw materials and with thicknesses greater than usual, in order to guarantee a product with maximum performance. One of the fundamental pieces is the stainless steel clip, responsible for holding the cladding, which with just a 90º turn fits into the profile, being able to slide on it vertically. Also noteworthy is the stainless spring that is attached to the vertical profile without any type of screws and is responsible for avoiding lateral movements in the cladding.

APPLICATIONS

Ceramic, Phenolic, Polymer Concrete, Natural Stone, Fiber Cement, etc.
Maximum thickness for exposed fixings: 14 mm
Maximum thickness for concealed fixings: 28 mm

SYSTEM COMPONENTS
